CLM-CVDR05

DOORDRISHTI

Edge AI Radar + Vision Monitoring

Edge AI that sees the event, not just the number. DOORDRISHTI combines millimetre-accurate radar water level sensing, Doppler radar surface velocity tracking and an AI-enabled Full HD camera in a single solar-powered unit. Its on-device AI engine detects events automatically, with no network or cloud needed, and captures an image of each one. The camera can also stream the site live, so operators can verify conditions before they act.

Request Commercial Proposal
DOORDRISHTI – Edge AI Radar + Vision Monitoring

Key Features of DOORDRISHTI

Automatic Event Detection

The on-device AI engine can be configured for the events that matter at your site, such as rapid water-level rise, abnormal flow, debris or bank changes.

Edge AI, No Network Needed

Detection runs on the device itself, so it keeps working when the network is down. Events and images are sent to the cloud when a connection is available.

Event-Triggered Capture

The camera captures images when an event is detected, so control rooms can see what happened instead of relying on a number alone.

Live Streaming from Site

Control room operators can watch the site live through the camera, to check flow conditions, bank erosion and debris blockages as they happen.

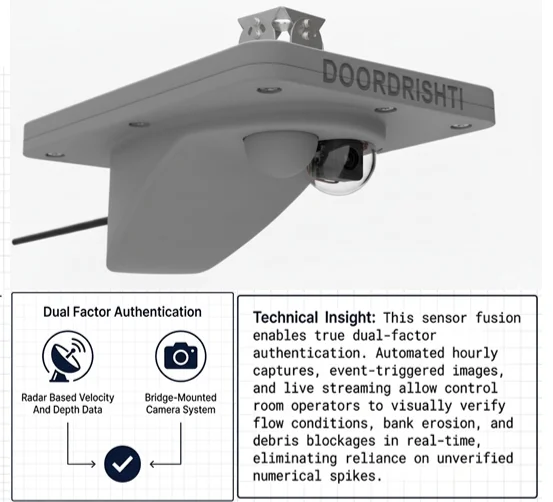

Dual-Mode Sensor Fusion

Radar level and velocity readings are validated against AI optical velocity tracking from the camera.

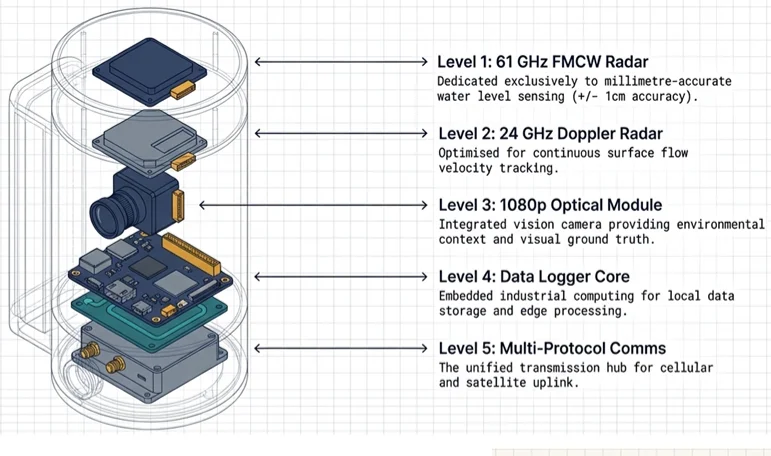

Engineering Specifications

Technical details for DOORDRISHTI.

Edge AI
On-device AI engine for automatic event detection, configurable for each site; runs without a network connection
Event Capture
Event-triggered images, hourly captures and live streaming from site
Water Level
61 GHz FMCW radar, 0 - 30 m, ± 1 mm
Surface Velocity
24 GHz Doppler radar, 0.02 - 20 m/s, ± 1-2% of measured value

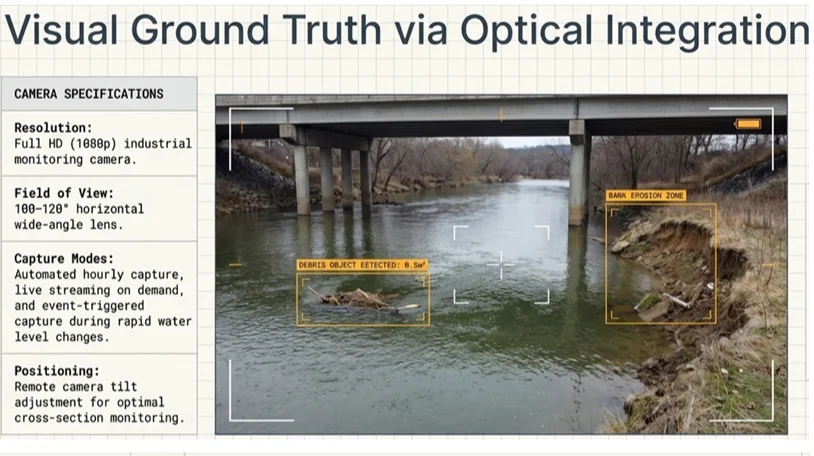

Camera
Full HD (1080p), AI-enabled, 2.8-12 mm varifocal lens (~120° horizontal FOV)
Optical Velocity Estimation
0.02 - 5 m/s via AI optical flow, cross-validated with the radar
Storage
On-board microSD (up to 128 GB) + cloud sync
Power
12 V DC / solar panel (60 W recommended), < 4 W active
Enclosure
Weatherproof enclosure
Operating Temp
-40°C to +70°C

Connectivity

GSM (2G / 3G / 4G)
RS-485
MODBUS
Ethernet
Wi-Fi
LoRa
MQTT

Why Choose the DOORDRISHTI?

Discover the powerful features that make DOORDRISHTI a trusted solution for critical environmental monitoring applications.

Verify Before You Act

Operators see a picture of the event next to the radar data, so alerts are checked rather than taken on trust.

Configurable for Your Site

The AI engine is set up for the events and conditions of each river, dam or drain, instead of a one-size-fits-all rule.

Self-Calibrating

Edge-AI self-calibration maintains precision without frequent manual intervention.

Rugged Enclosure

Weatherproof enclosure built for outdoor deployment.

Use Cases of DOORDRISHTI

The DOORDRISHTI is designed to serve a wide range of applications where real-time insights are crucial. Here's where it fits best.

Flash Flood Early Warning

Deploy the DOORDRISHTI to accurately monitor and safeguard operations within flash flood early warning.

Dam & Reservoir Management

Deploy the DOORDRISHTI to accurately monitor and safeguard operations within dam & reservoir management.

Urban Drainage Monitoring

Deploy the DOORDRISHTI to accurately monitor and safeguard operations within urban drainage monitoring.

Part of the ClimMaTech Platform

Once DOORDRISHTI is connected, its data flows into the ClimMaTech cloud: dashboard, alerts, reports and APIs.

Platform Features

Real-Time Dashboard
Historical Trends
Alert Management
API Integration
Multi-Site Monitoring
Report Generation

System Architecture

1
DOORDRISHTI (CLM-CVDR05)
2
Secure Communication Link
3
ClimMaTech Cloud
4
Dashboard, Alerts & APIs
ISO 9001:2015 CERTIFIED ORGANISATION
Designed, Engineered & Made in India

FAQs about DOORDRISHTI

What events can DOORDRISHTI detect?

The on-device AI engine is configurable for each site. Examples include rapid water-level rise, abnormal flow, debris and bank changes. Contact us and we will set it up for the events you need.

Where does the AI run, and does it need the internet?

The AI engine runs on the device itself and does not need a network or cloud connection to detect events. Results and images are sent to the ClimMaTech cloud when a connection is available.

What happens when an event is detected?

The camera captures images of the event, which are available to operators alongside the radar readings, so they can verify conditions before acting.

Can I watch the site live?

Yes. The camera supports live streaming from site, so control room operators can see conditions in real time. Live viewing needs a network connection; event detection does not.

Does DOORDRISHTI require grid power?

No. It runs on 12 V DC or a solar panel (60 W recommended) for autonomous off-grid deployment.

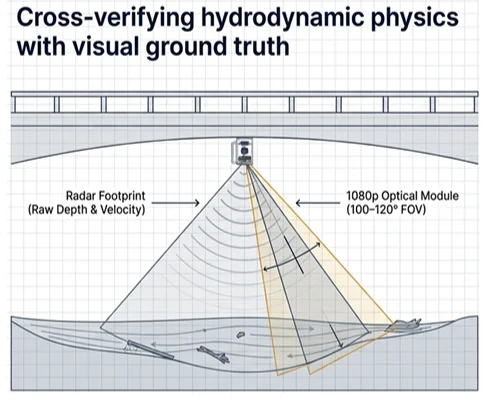

How does the dual validation work?

The camera estimates surface velocity with AI optical flow tracking and the radar measures it directly. The two are compared for cross-validation.

Does it require frequent manual calibration?

No. Edge-AI self-calibration maintains precision without frequent manual intervention in the field.

What is the maximum measurement width for the camera?

The varifocal lens is suited to river or drain widths up to 20 m.

What communication options are supported?

GSM (2G / 3G / 4G), RS-485, MODBUS, Ethernet, Wi-Fi, LoRa and MQTT, connecting to the ClimMaTech Cloud, which feeds the Aagah mobile app.

Can DOORDRISHTI be used as a river monitoring camera for flood early warning?

Yes. It combines a Full HD AI camera with level and velocity radar. The camera captures an image when an event is detected and can stream the site live, so operators can verify conditions before issuing a warning.

Can DOORDRISHTI work like an AWLR or AWVLR station with a camera?

Yes. It measures water level and surface velocity with radar, like an AWLR or AWVLR station, and adds a camera and on-device AI so operators can see what caused a change before they act.

Where is DOORDRISHTI made?

DOORDRISHTI is designed, engineered and made in India by ClimMaTech. It is built for outdoor use anywhere, with an operating range of -40°C to +70°C and GSM (2G / 3G / 4G) connectivity.
